Merced Land Surveyor: ALTA, Boundary, Topographic & Agricultural Land Surveys for Residential and Commercial Properties

Merced Land Surveyor has spent more than 30 years performing ALTA/NSPS land title surveys, boundary and property line surveys, topographic mapping, and agricultural land surveys across Merced County and the Central San Joaquin Valley. We also prepare elevation certificates and flood zone determinations, handle construction staking, map subdivisions and parcel splits, survey easements, process lot line adjustments, and fly drone-based aerial mapping missions for homeowners, developers, farmers, and commercial clients throughout the region. From a quarter-acre residential lot in downtown Merced to a five-hundred-acre almond orchard outside Livingston, we bring the same licensed precision to every job.

Every project starts with a free quote and a written scope of work. We're licensed California Professional Land Surveyors under the state's Professional Land Surveyors' Act, and every map we deliver is signed and sealed before it leaves our office. That license only covers half of what it takes to get a survey right here, though. Property lines in Merced County can trace back to Mexican-era land grants like Rancho Sanjon de Santa Rita. Agricultural parcels often carry canal or irrigation easements tied to Merced Irrigation District's water rights, and a property near Bear Creek or Black Rascal Creek needs an accurate read on flood risk before anyone builds. We research the Merced County Surveyor's Office records on every job, from a downtown commercial lot to a hundred-acre dairy operation.

Request a Free Quote

Request a Free Quote

Property & Boundary Surveys in Merced, CA

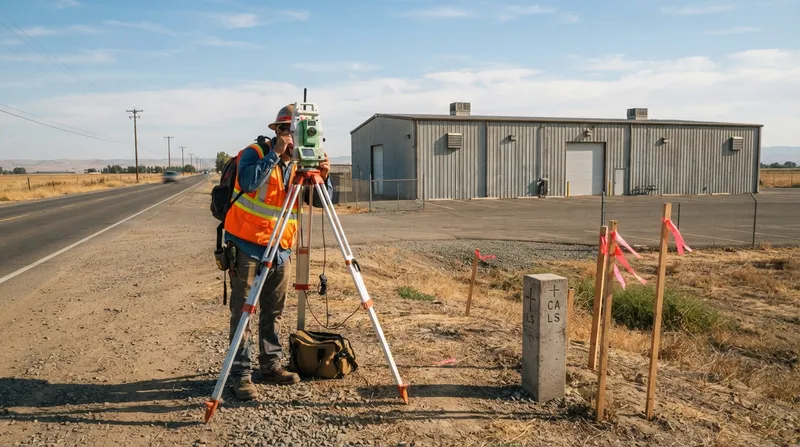

Surveyor at a total station beside a survey monument and flagged stakes on the road frontage of a commercial parcel with a steel building

ALTA/NSPS Land Title Surveys

An ALTA/NSPS Land Title Survey follows the 2021 Minimum Standard Detail Requirements jointly published by the American Land Title Association and the National Society of Professional Surveyors. Title companies and lenders ask for one whenever a commercial property, agricultural parcel, or investment property changes hands, because it documents boundaries, easements, and encroachments to a standard that supports title insurance. The client and title company select from Table A, a menu of optional items like topography, zoning setbacks, and utility locations, so the survey covers exactly what the transaction needs.

In Merced County, ALTA surveys come up constantly on commercial building sales, agricultural land transfers, and utility-scale solar projects moving through the county's approval process. We've surveyed parcels for buyers financing dairy operations, orchard purchases, and warehouse space near Castle Commerce Center, and every map we deliver is signed, sealed, and built to satisfy the title company's specific requirements.

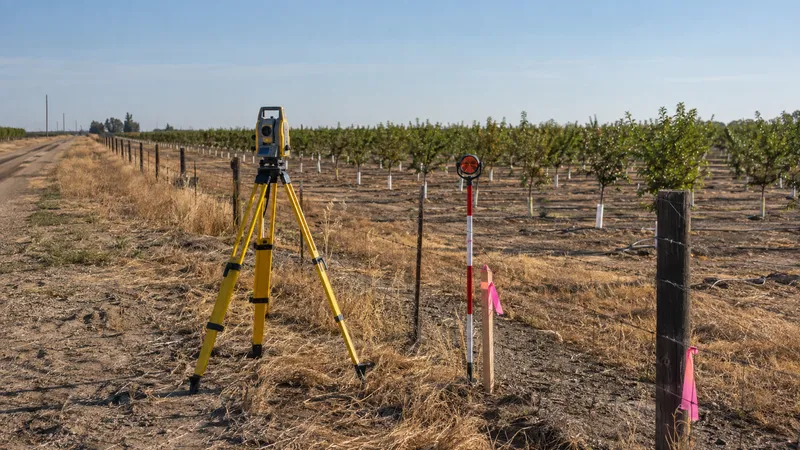

Total station on a tripod and a prism pole at a flagged stake along a wire fence line beside a young orchard

Boundary & Property Line Surveys

A boundary survey locates and marks the legal property lines of a parcel using recorded deeds, prior maps, and physical evidence in the field. We search for existing monuments first, then set new ones where corners have been lost or disturbed, and file a Record of Survey with the Merced County Surveyor's Office when the work meets the threshold under state law. It's the most requested survey we do, whether the job is a quarter-acre residential lot or a two-hundred-acre farm.

Merced County's agricultural land makes this work different from a typical suburban boundary survey. Farm and ranch boundary surveys often cover far more acreage than a residential lot, with corners buried under decades of disking and irrigation work, and property under a Williamson Act contract carries its own parcel history worth checking before a sale or a lease renewal. We handle both the half-acre subdivision lot and the row-crop parcel with the same attention to the county's actual recorded maps.

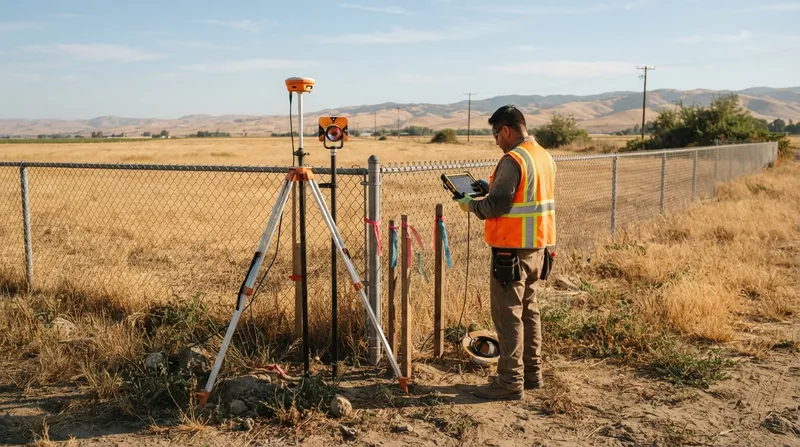

Surveyor with a field tablet beside a GNSS receiver and prism on a tripod at a flagged chain-link fence corner between dry-grass parcels

Lot Line Adjustments

A lot line adjustment moves the boundary between two or more existing parcels without creating a new lot, and it's processed under California's Subdivision Map Act rather than a full subdivision map, so it skips the tentative-map hearing process a new subdivision requires. The work includes a boundary survey of both parcels, new legal descriptions, a plat or exhibit map, and the application itself, which then goes through city or county plan check before recording.

We prepare lot line adjustments for property owners resolving an old fence-line discrepancy, splitting off a portion of farmland for a family member, or cleaning up a parcel ahead of a sale, working with whichever agency has jurisdiction, Merced County Planning and Community Development or a city planning department. Expect several weeks from field survey to recorded map once the plan checker signs off.

Surveyor in a hi-vis vest reviewing a large survey plat on a drafting table in an office, with a total station and an aerial parcel map behind

Boundary Dispute Resolution & Expert Witness Land Surveying

When a boundary dispute ends up in front of a judge or a mediator, we retrace the original survey, research the chain of title, and prepare exhibits that hold up under cross-examination. Some of these cases turn on a single monument found or missing decades after the original survey.

We take on encroachment cases, fence-line disputes, and title disagreements for both residential neighbors and agricultural landowners across Merced County, and we testify when a case actually goes to court.

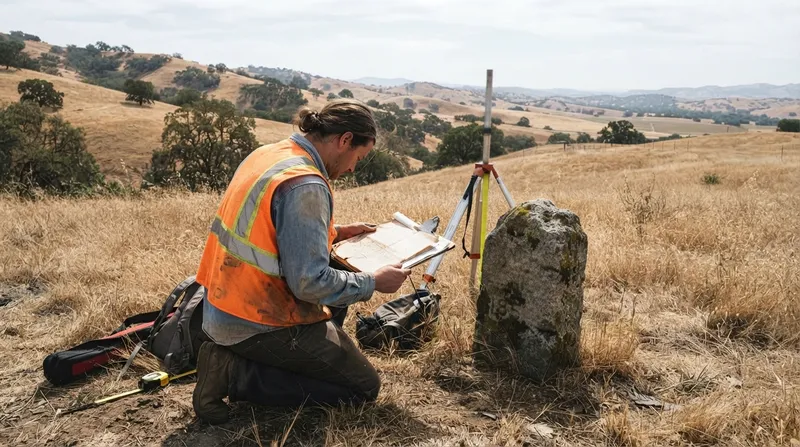

Surveyor kneeling beside a weathered stone boundary marker, reading an old map on golden foothills dotted with oaks

Spanish & Mexican Land-Grant Boundary Retracement

Some of the oldest property lines in Merced County trace back to Mexican-era land grants, surveyed decades before California statehood and often described with vague, hand-drawn diseños rather than modern coordinates. Retracing one of these boundaries means working through the original grant documents, the U.S. patent survey that followed, and every recorded map since.

Rancho Sanjon de Santa Rita, granted in 1841 and covering nearly 49,000 acres around what's now Santa Rita Park and Dos Palos, and Rancho Panoche de San Juan y Los Carrisolitos, granted in 1844, both still shape property boundaries in western Merced County today. We've traced title back through both grants on parcels where the modern deed just didn't match what was on the ground.

Design & Construction Surveys for Merced Properties

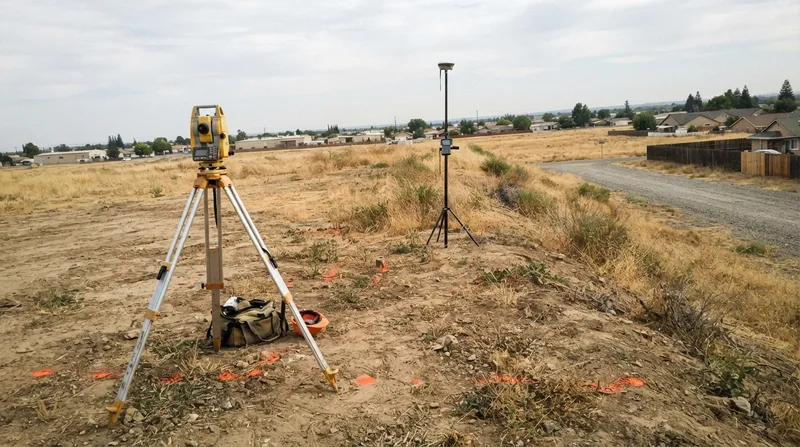

Total station and GNSS rover on tripods across a sloping vacant lot marked with orange paint, with homes at the edge of town behind

Topographic Surveys & Site Mapping

A topographic survey maps the existing ground elevations, contours, and physical features of a site, giving an architect or engineer the base information needed to design anything from a home addition to a commercial building. We collect this data with GPS receivers, robotic total stations, and drone-based photogrammetry, depending on the size and terrain of the site.

A lot of our topographic work in Merced County covers ground most surveyors would rather not walk on foot, hundreds of flat acres of orchard or row crop where a drone can map the site in a fraction of the time. We also locate existing wells, septic systems, and groundwater monitoring wells during these surveys, which matters in a county where the underlying groundwater basin is under active state oversight for overdraft.

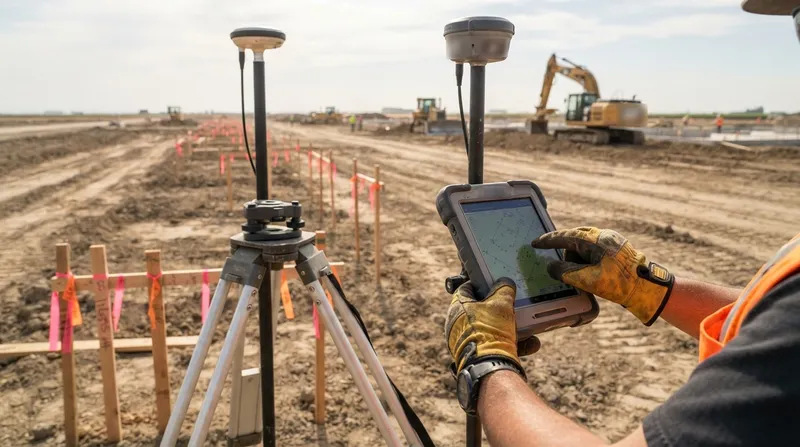

Surveyor's gloved hands on a field data collector beside GNSS receivers at rows of flagged grade stakes, with an excavator working on the graded site behind

Construction Staking & Site Layout

Construction staking puts the design on the ground, marking building corners, foundation lines, pad and finish-floor elevations, grading limits, and utility trenches so the contractor knows exactly where to build. Most projects need staking at several points as the work progresses rather than a single visit, from initial layout through utility rough-in to final grading.

We stake residential additions, new homes in Merced's growing subdivisions along Highway 99, and commercial pads, and we also verify concrete forms before a pour when a project calls for it, catching a misaligned foundation before it becomes an expensive fix.

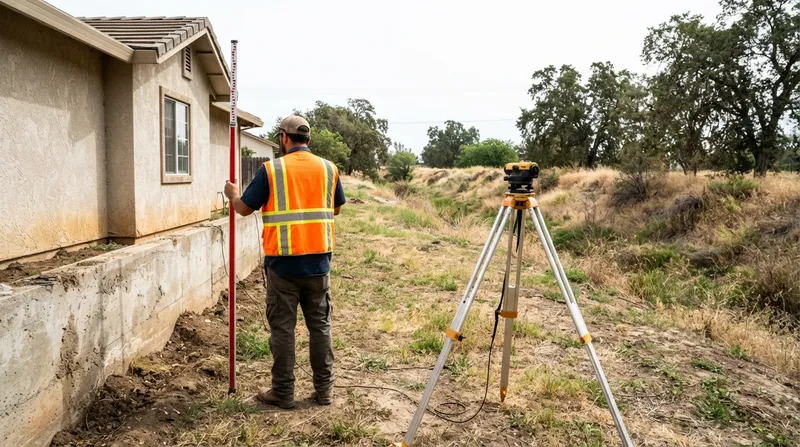

Surveyor holding a level rod beside a house foundation while an automatic level on a tripod sights from the grassy creek bank

Elevation Certificates & Flood Zone Determination

An Elevation Certificate is FEMA Form 086-0-33, and it documents a structure's elevation relative to the base flood elevation so an insurer can rate a flood policy correctly. We also help property owners pursue a Letter of Map Amendment when a structure sits above the mapped flood hazard but the FEMA map hasn't caught up.

This work matters more here than in a lot of California markets. Bear Creek and Black Rascal Creek have both flooded the city of Merced repeatedly, with roughly ten million dollars in damage in 1998 and another twelve million in 2006, and Black Rascal Creek remains the one watershed running through the city that still isn't fully controlled. If your property sits anywhere near either creek, an accurate Elevation Certificate is worth having on file.

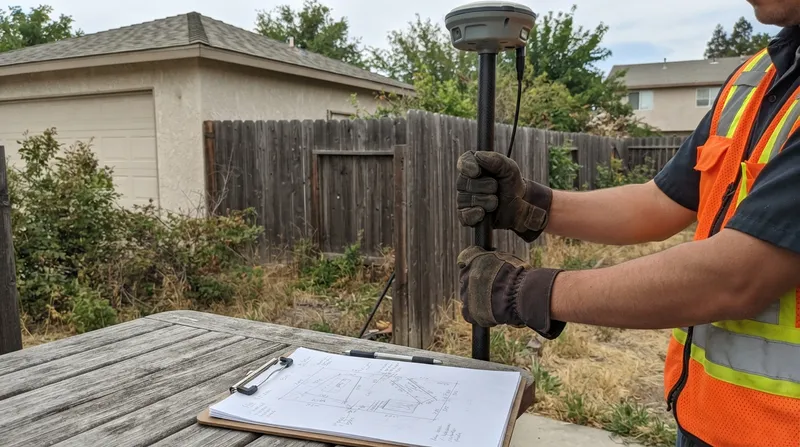

Surveyor's gloved hands on a GNSS rover pole beside a clipboard with a hand-drawn plot plan, in a backyard with a wooden fence and detached garage

Site Plan & Plot Plan Surveys

A site plan or plot plan survey is a measured base map of a parcel and its existing improvements, prepared for a building permit submittal. It shows the parcel's boundaries, existing structures, setback lines, and the location of the proposed work, and it's the drawing a city or county planning department needs before it will approve an addition, a pool, or a new accessory structure.

We prepare these for homeowners adding an ADU, a pool, or a room addition, and for agricultural property owners permitting a new barn or equipment structure, working directly against Merced County's or the City of Merced's own permit requirements.

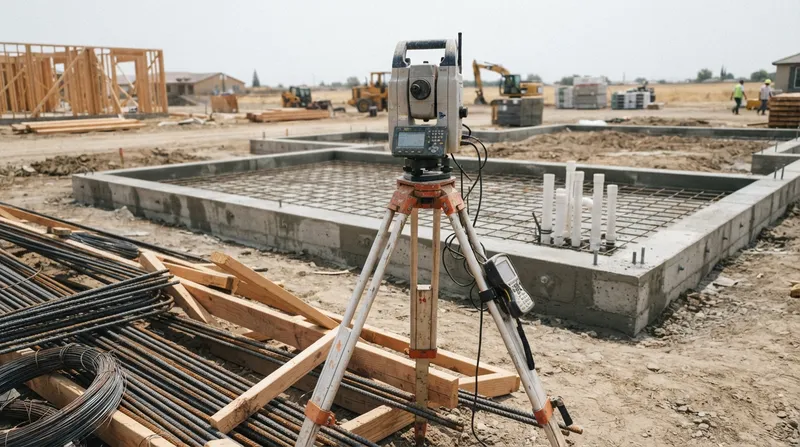

Total station on a tripod beside a new concrete foundation with rebar mesh and utility stub-up pipes, with framing and equipment on the job site behind

As-Built Surveys

An as-built survey measures what was actually constructed, foundation location, utility runs, finish grades, and site improvements, and compares those measurements against the approved plans to confirm everything landed where it was supposed to.

Contractors and property owners order these at the end of a project, often as part of closing out a permit or certificate of occupancy, and we've done them on everything from a single-family remodel to commercial build-outs at Castle Commerce Center.

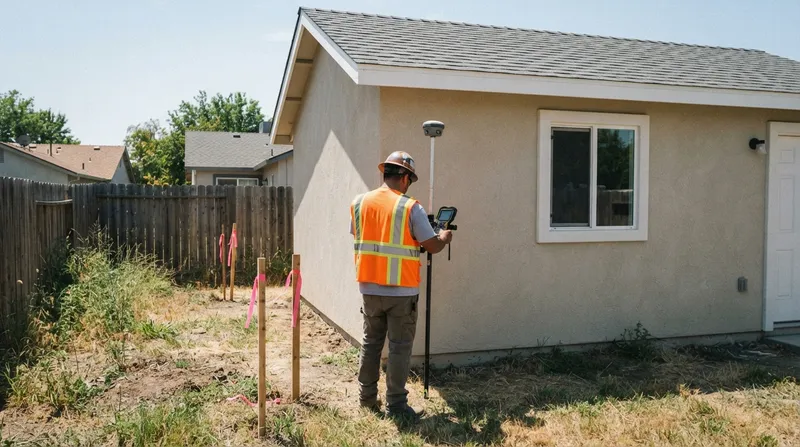

Surveyor with a GNSS rover and data collector beside a finished stucco accessory dwelling unit, with flagged setback stakes along the backyard fence

ADU & Unpermitted Structure Surveys

An ADU site plan survey supports a permit application for a new accessory dwelling unit, showing setbacks, existing structures, and utility connections on the parcel. We also handle the related job of locating and documenting a structure that was built without a permit, which is often the first step toward legalizing it.

Both come up regularly in Merced, where ADU construction has picked up right along with the county's population growth, and where plenty of older properties have a shed, a barn conversion, or an addition that was never permitted in the first place.

Land Development & Mapping Surveys in Merced County

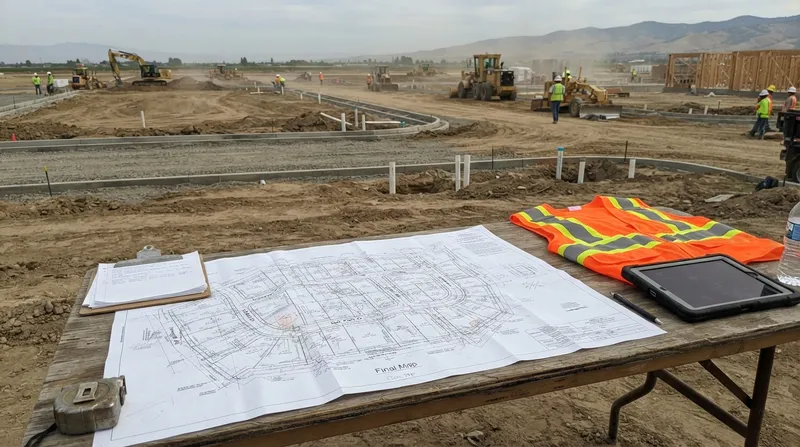

Subdivision final map plat on a job-site table beside a hi-vis vest and tablet, with new streets and lots being graded behind

Subdivision, Tract & Parcel Maps

Dividing land in California runs through the Subdivision Map Act. A parcel map covers four or fewer lots, a tract map covers five or more, and both require a boundary and topographic survey, a tentative map, agency review, and a final recorded map before the new lots legally exist.

Merced's population has grown by more than twelve percent since 2020, and that growth is showing up as new subdivisions along the Highway 99 corridor. We've mapped residential tracts for developers working that corridor and parcel splits for landowners dividing agricultural property for family members or buyers.

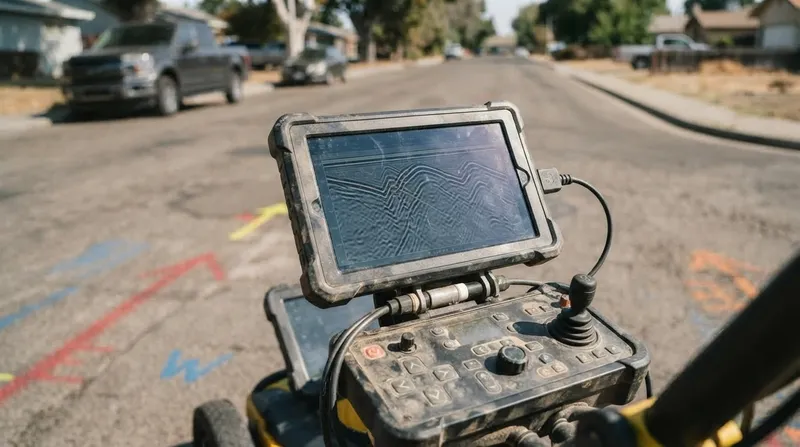

Ground-penetrating radar cart showing a scan on its screen, on a residential street marked with colored utility locate paint

Utility & Underground Surveys (SUE)

Before a design ever gets built, someone has to figure out what's already buried at the site. We research utility records, survey the surface evidence, and locate underground utilities to the quality level a project calls for, sometimes going as far as exposing a line to confirm its exact depth and position.

This groundwork matters ahead of any subdivision, road widening, or commercial construction project in Merced County, where decades of irrigation pipelines and canal infrastructure sit underground alongside the usual water, sewer, and utility lines.

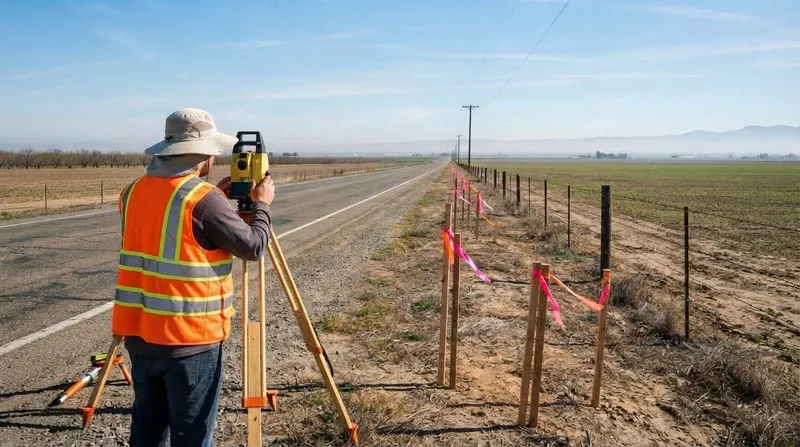

Surveyor at a total station on the shoulder of a straight rural road, with flagged right-of-way stakes along a wire fence and farmland stretching to the horizon

Route, Corridor & Right-of-Way Surveys

Route and corridor surveys cover the centerline, stationing, and existing features along a linear project, whether that's a road, a pipeline, or a utility corridor, and they define the public and private rights-of-way the project needs to move forward.

We've done this work along Merced's Highway 99, 140, and 59 corridors, for rail and freight projects tied to the Castle Commerce Center's rail and inland-port expansion, and for the transmission lines and interconnection routes serving the solar and battery-storage projects going up around Los Banos and the rest of the county.

Specialty Land Survey Services for Merced and the Central Valley

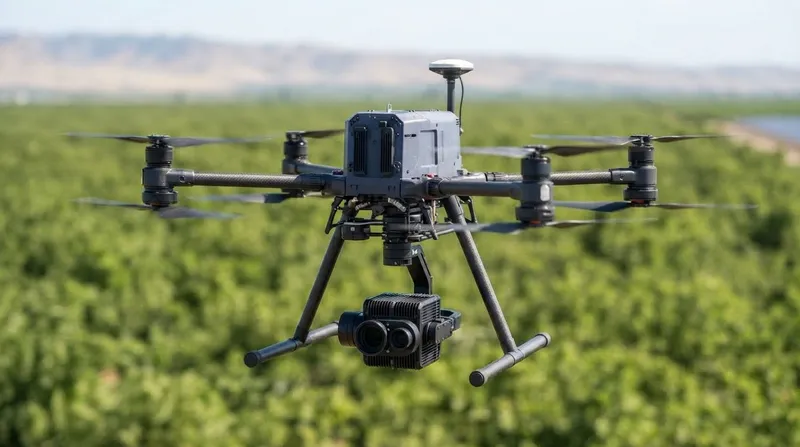

Mapping drone with a GNSS antenna and a dual-lens camera payload hovering above an orchard, with foothills in the distance

Drone & Aerial Mapping

We fly FAA Part 107-licensed drones equipped for photogrammetry and LiDAR mapping, capturing imagery at a ground resolution tight enough to support engineering-grade topographic mapping, and producing orthophotos and surface models of a site far faster than a ground crew could cover on foot.

That speed matters most on the acreage we survey often in Merced County: large row-crop and orchard parcels, dairy operations, and the solar farm sites spreading across the western half of the county. We've also used drone-based thermal imaging to spot irrigation problems and crop stress across a field, a capability that goes beyond a standard boundary or topo survey.

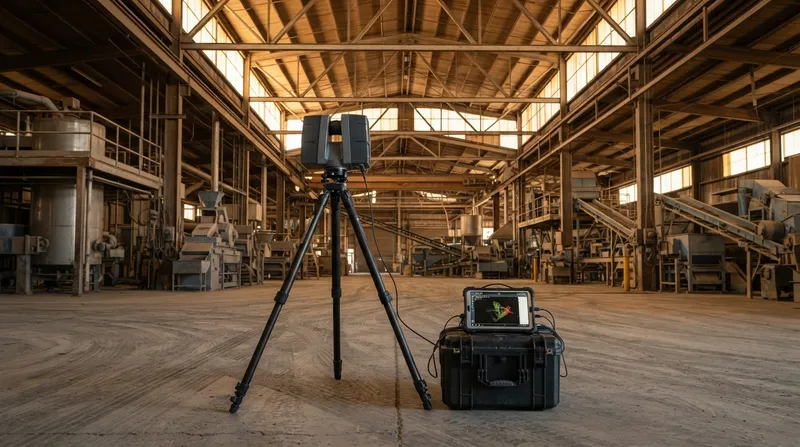

3D laser scanner on a tripod in a large agricultural processing warehouse, with a rugged tablet showing a point cloud on an equipment case beside it

3D Laser Scanning & Scan-to-BIM

High-definition laser scanning captures a dense point cloud of a site or structure, often millions of points at sub-inch accuracy, which we register and convert into a scan-to-BIM model for renovation planning, clash detection, or an as-built record of a complex existing building.

We've used it on commercial renovation and tenant improvement projects tied to UC Merced's ongoing campus construction and the industrial buildings going up at Castle Commerce Center, where an accurate existing-conditions model saves real money before design even starts.

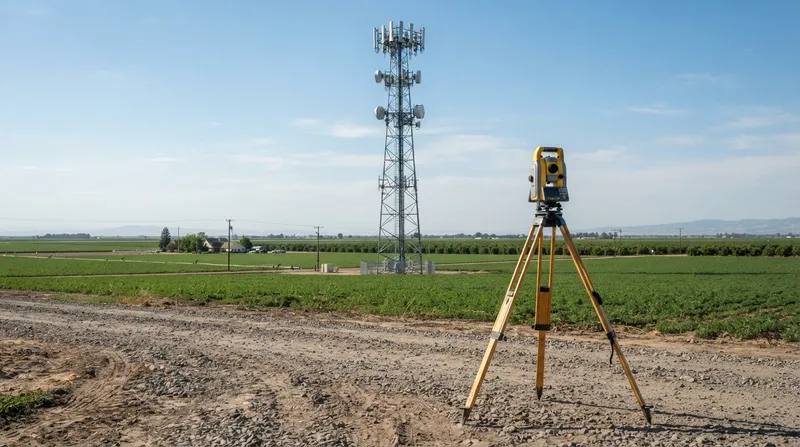

Total station on a tripod on a gravel road aimed at a lattice cell tower rising above green farmland

Cell Tower & Structure Height Certifications

Carriers and tower owners need a licensed surveyor to certify the height and location of a tower or antenna structure, work the industry often calls a 1A or 2C certification, to satisfy FAA Form 7460 airspace review before a new site goes up or an existing one gets modified.

We certify cell towers and tall agricultural or industrial structures across the Central Valley, where new tower sites keep going up alongside the region's growing wireless and agricultural infrastructure.

Ready to talk about your project?

Schedule Your Survey

Why We're the Best Land Surveyor in Merced, CA

Decades of Merced County Boundary Experience

More than 30 years of work in this county means hundreds of ALTA, boundary, agricultural, and construction-staking surveys behind us, from downtown commercial lots to orchard parcels outside Livingston. We know how the Merced County Surveyor's Office checks a map, what the county and city plan checkers expect, and how to run down a boundary whose record starts with a Mexican-era land grant. That experience is what keeps a project from stalling over a technicality.

Licensed, Sealed, and Filed to Standard

Every survey is performed by or under a California Professional Land Surveyor licensed through the state Board for Professional Engineers, Land Surveyors, and Geologists, under the Professional Land Surveyors' Act. Every map and legal description is signed and sealed. Records of Survey and Corner Records are filed with the Merced County Surveyor's Office inside the 90-day window the statute sets. Our title surveys meet the 2021 ALTA/NSPS Minimum Standard Detail Requirements, our subdivision maps follow the California Subdivision Map Act, and our elevation certificates meet FEMA's requirements. We hold a California Land Surveyors Association membership, and we carry professional liability and general liability insurance.

Survey-Grade Technology, Field-Checked Work

We run survey-grade GNSS and GPS receivers, robotic total stations, and digital levels, backed by FAA Part 107-licensed drone mapping for large agricultural and solar acreage too big to walk economically. Monuments we set are durable and built to hold up against years of disking and cultivation, whether that's a rebar and cap, a brass disk, or a witness monument. Our data is tied to the California Coordinate System, and our CAD deliverables are drawn to published standards. Every field measurement is checked against the record before it goes on a map.

Direct Access and a Fixed Fee

You get a free, no-obligation quote with a written scope and a flat fee wherever the work supports one. You talk to the licensed surveyor who is doing your survey, not a scheduler and not a rotating crew. We build turnaround around your escrow date, permit deadline, or planting and harvest windows, and we offer rush service when the calendar is tight. You receive digital PDF and CAD files, and we handle the county recording from field work through the recorder's office.

Five reasons Merced County property owners call us first:

  • A licensed California Professional Land Surveyor signs and seals every deliverable
  • More than 30 years of ALTA, boundary, and agricultural survey work across the county
  • Free quotes and a written, fixed fee before any field work
  • Direct line to the surveyor doing the work
  • Recorded maps and county filings handled start to finish

The Merced Land Surveyor Process

  1. 1. Consultation & Scope

    We start with a conversation about the parcel, what the survey is for, your deadline, and how to get onto the property. Whether you're closing escrow on a residential lot, splitting off part of a farm, pulling a permit, or settling a boundary disagreement changes which survey and which deliverable you actually need, and we sort that out before quoting a price.

  2. 2. Records & Title Research

    We pull the deed, prior recorded maps, and existing Records of Survey and Corner Records from the Merced County Surveyor's Office, and, where the parcel calls for it, Williamson Act contract status or Merced Irrigation District easement records. This research happens before the field crew is scheduled, because it tells them what to look for.

  3. 3. Written Proposal & Fixed Fee

    You get a written scope of work and a flat fee built from the research, not a number over the phone. The proposal spells out what we'll deliver, what gets filed, and what the schedule looks like, so there are no surprises once the work starts.

  4. 4. Field Survey

    The crew recovers existing monuments, occupies control with GNSS and total station, and measures the boundary evidence, improvements, topography, and utilities the scope calls for. On large agricultural or solar-site acreage, we add drone mapping to capture what a walking crew would take days to cover.

  5. 5. Boundary Analysis & Computations

    Back in the office, we resolve the boundary by weighing the record calls against the physical evidence we found, prior surveys, and, on older parcels, the rancho-era grant history behind the legal description. Then we compute the final corner positions and the parcel area.

  6. 6. Map & Exhibit Preparation

    We draft the survey map, exhibit, or plat, along with any legal descriptions, to CAD and county standards. The licensed surveyor reviews the drawing, then signs and seals it.

  7. 7. Filing & Delivery

    Where the work requires it, we file a Record of Survey or Corner Record with the Merced County Surveyor's Office within the statutory 90 days, and we set the monuments in the field. You receive the signed PDF and the CAD files.

How Long Does a Land Survey Take in Merced, CA?

A straightforward residential or agricultural boundary survey is usually scheduled within one to two weeks, with field work done in a day or two and the map delivered shortly after. A lot line adjustment or a subdivision map runs longer, often several weeks to a few months, because the map has to clear the reviewing agency's plan check and then get recorded.

A few things stretch a timeline. Dense orchards, disked row-crop fields, and large acreage slow the field crew down. Missing or destroyed monuments mean more time recovering evidence and more research. A deeply conflicted record, common on older rancho-derived parcels, takes longer to resolve, and canal or irrigation easements add their own research step. County map check has its own queue, and that queue is outside our control. When your escrow or permit date is firm, tell us early and we'll schedule rush field work and prioritize the drafting.

The one fixed deadline is set by statute. A Record of Survey has to be filed with the Merced County Surveyor's Office within 90 days of the field survey being completed, and we build that into the schedule from the start.

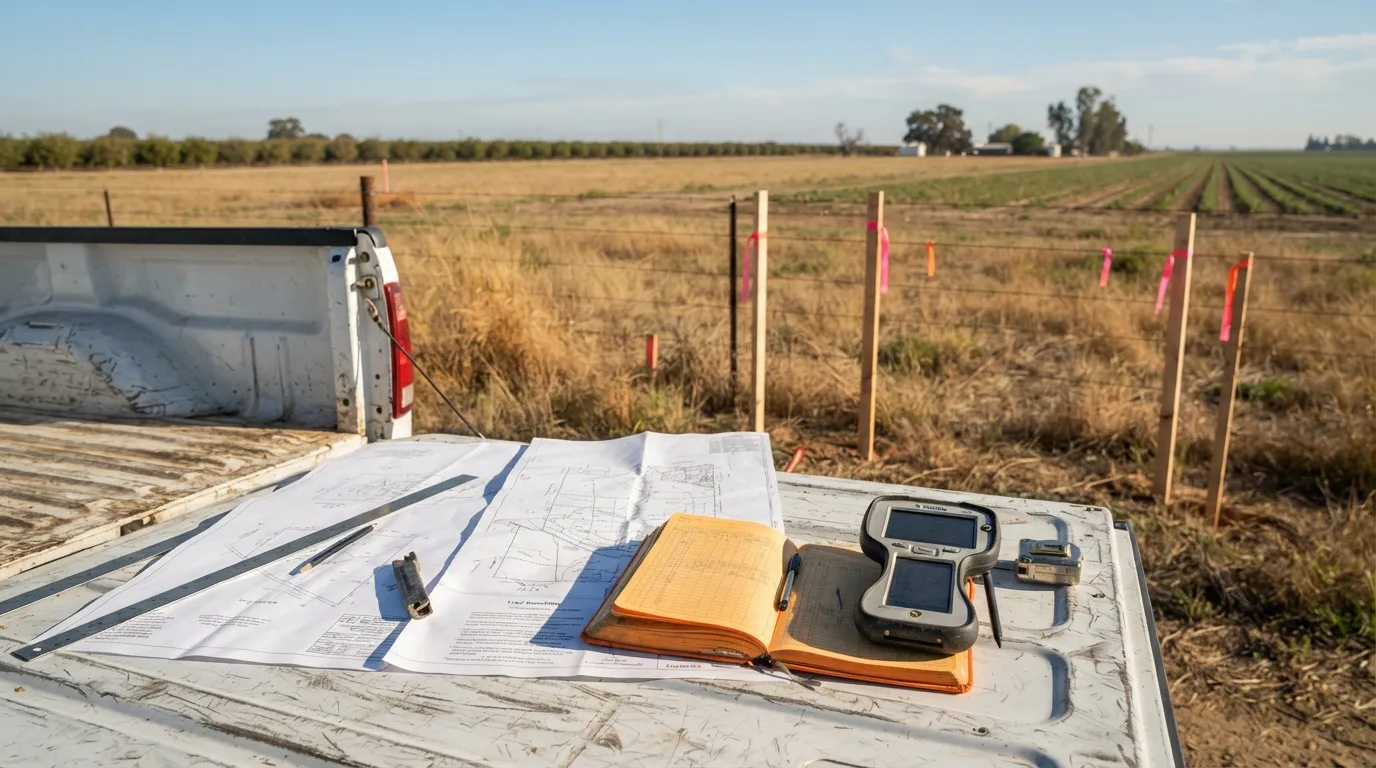

Survey plats, a field book and a data collector on a pickup tailgate beside a staked fence line and farm fields

How Much Does a Land Survey Cost in Merced, CA?

Every quote starts with a site-specific conversation, because the same type of survey can cost very differently depending on the property. Parcel size is the biggest factor: a standard quarter-acre residential lot takes far less field time than a hundred-acre orchard or dairy operation, and our fee scales with the acreage and the number of corners that actually need to be found or set.

Terrain and access matter almost as much. Most of Merced County sits on flat valley floor, which keeps a lot of our fieldwork efficient, but a dense almond orchard, a disked row-crop field, or a parcel out toward the Mariposa foothills all take longer to walk and measure than an open residential lot. How complete the existing record is plays a role too. A property with a clean, recent survey on file goes faster than one where the last recorded map is decades old, corners were disturbed by farming or construction, or the deed description doesn't quite match what's on the ground.

A few cost drivers are specific to this part of the Central Valley. Parcels served by Merced Irrigation District often carry canal or irrigation easements that need extra title and field research before we can finalize a boundary or an ALTA survey. Lot line adjustments and subdivision maps cost more as the number of affected parcels grows, since each one needs its own updated legal description and a pass through county or city plan check. Any project on a tight escrow or permit deadline carries a premium for expedited scheduling.

Survey TypeTypical RangeWhat Drives the Price
Boundary / Property Line Survey$1,500 - $6,000Parcel size, how many corners must be found or reset, and how complete the existing record is
Topographic Survey$2,000 - $8,000Acreage, terrain and vegetation density, and how much contour and feature detail the design team needs
ALTA/NSPS Land Title Survey$3,500 - $15,000+Parcel size and complexity, the number of Table A items the title company requests, and how many easements or encroachments need researching
Lot Line Adjustment Survey$3,000 - $8,000Number of parcels involved, complexity of the new legal descriptions, and the agency's plan-check requirements
Elevation Certificate$500 - $1,500Building complexity (crawlspace, multiple entries, additions) and whether a follow-up LOMA is needed
Construction Staking$1,000 - $5,000+Project size and how many separate staking visits the build requires, from layout through final grading
ADU Site Plan Survey$1,000 - $3,000Number of existing structures on the parcel and whether an unpermitted structure needs documenting too

In Merced County, the two factors that most often push a quote above a typical statewide range are the same two things: acreage on agricultural parcels, and the extra research that canal or irrigation easements require.

Proudly Serving Merced County and the Central Valley

We serve all of Merced County, including Merced, Atwater, Los Banos, Livingston, Winton, Delhi, Le Grand, Planada, Dos Palos, and Gustine, along with adjacent Stanislaus, Madera, and Mariposa Counties. Our license is good statewide, so a project outside this footprint is a conversation, not a dead end.

Aerial view over downtown Merced toward the flat Central Valley farmland beyond

What Our Merced Customers Are Saying

  • Gabriel R.
    "Merced Land Surveyor got our boundary survey done fast so we could close on our almond orchard outside Livingston, done in under two weeks."
  • Diane F.
    "Finally found a surveyor who actually understood our Williamson Act contract and what it meant for the parcel split."
  • Brian O.
    "They staked our whole subdivision phase without a single callback from the framing crew."
  • Laura M.
    "Merced Land Surveyor gave us a straightforward quote, showed up when they said they would, and the ALTA survey cleared title with no issues."

Merced Land Surveyor FAQs

How much does a land survey cost in Merced, California?

It depends on the survey and the parcel, but here's the range for the common ones:

  • Boundary or property line survey: $1,500 to $6,000, more for large agricultural parcels
  • Topographic survey: $2,000 to $8,000, depending on acreage and terrain
  • ALTA/NSPS land title survey: $3,500 to $15,000 and up, driven by parcel size and Table A items
  • Elevation certificate: $500 to $1,500
  • Construction staking: $1,000 to $5,000 and up, scaling with project size
  • Lot line adjustment: $3,000 to $8,000, including legal descriptions and agency processing
  • ADU site plan survey: $1,000 to $3,000

Every quote we provide is free and written, so you'll know the exact scope and price before we schedule anything.

What's the cheapest type of land survey?

An Elevation Certificate is usually the least expensive option we offer, typically $500 to $1,500, since it's a single-visit measurement against a fixed form. A basic boundary survey on a small residential lot with a clean existing record also tends to be on the lower end of our pricing.

What's the difference between a surveyor and a land surveyor?

"Surveyor" gets used loosely, but a licensed land surveyor in California holds a Professional Land Surveyor license issued by the state and is legally authorized to establish and certify property boundaries. Anyone can measure a piece of land, but only a licensed PLS can sign, seal, and file a survey that holds up legally.

How much should I expect to pay a surveyor for a small residential job?

For a straightforward lot with clear existing records, expect somewhere in the $1,500 to $3,000 range. Overgrown lots, missing monuments, or conflicting prior surveys push that number up.

Do you handle large agricultural or ranch surveys?

Yes. We regularly survey parcels running into the hundreds of acres, and we use drone mapping to cover that ground far faster than a crew working on foot.

Can you do construction staking for a large subdivision or commercial project?

Yes, and we stay on the project through multiple staking visits as it progresses, from initial layout through utility rough-in and final grading.

Do you survey property in mountainous or hillside terrain?

Most of our work covers the flat valley floor, but we do take on hillside parcels in the foothill areas of Mariposa and eastern Merced County when the job calls for it.

Can you locate underground utilities on my property?

Yes, we research utility records and survey the surface evidence, and we can locate and mark underground lines to the quality level your project needs.

Do you offer aerial or drone surveying?

Yes. Our FAA Part 107-licensed drone service covers large-acreage topographic mapping, photogrammetry, and agricultural applications like crop thermal imaging.

Is the initial consultation really free?

Yes. We provide a free, no-obligation quote with a written scope before any work begins.

How long does a typical land survey take from start to finish?

A standard boundary survey usually takes one to two weeks from the field visit to a finished deliverable. Lot line adjustments, subdivision maps, and anything requiring agency review take longer, often several weeks to a few months.

Get Your Merced Land Survey Started

Whether you need an ALTA survey to close a deal, a boundary or agricultural property line survey, a topographic survey for a design team, construction staking, a lot line adjustment, an elevation certificate, or specialty work like drone mapping or expert-witness testimony, it starts the same way, with records research and a written fixed fee before anyone drives a stake. Call or request a quote, and you'll be talking to the licensed surveyor who does the work.
